Cabinet & Shelf Lighting Solution

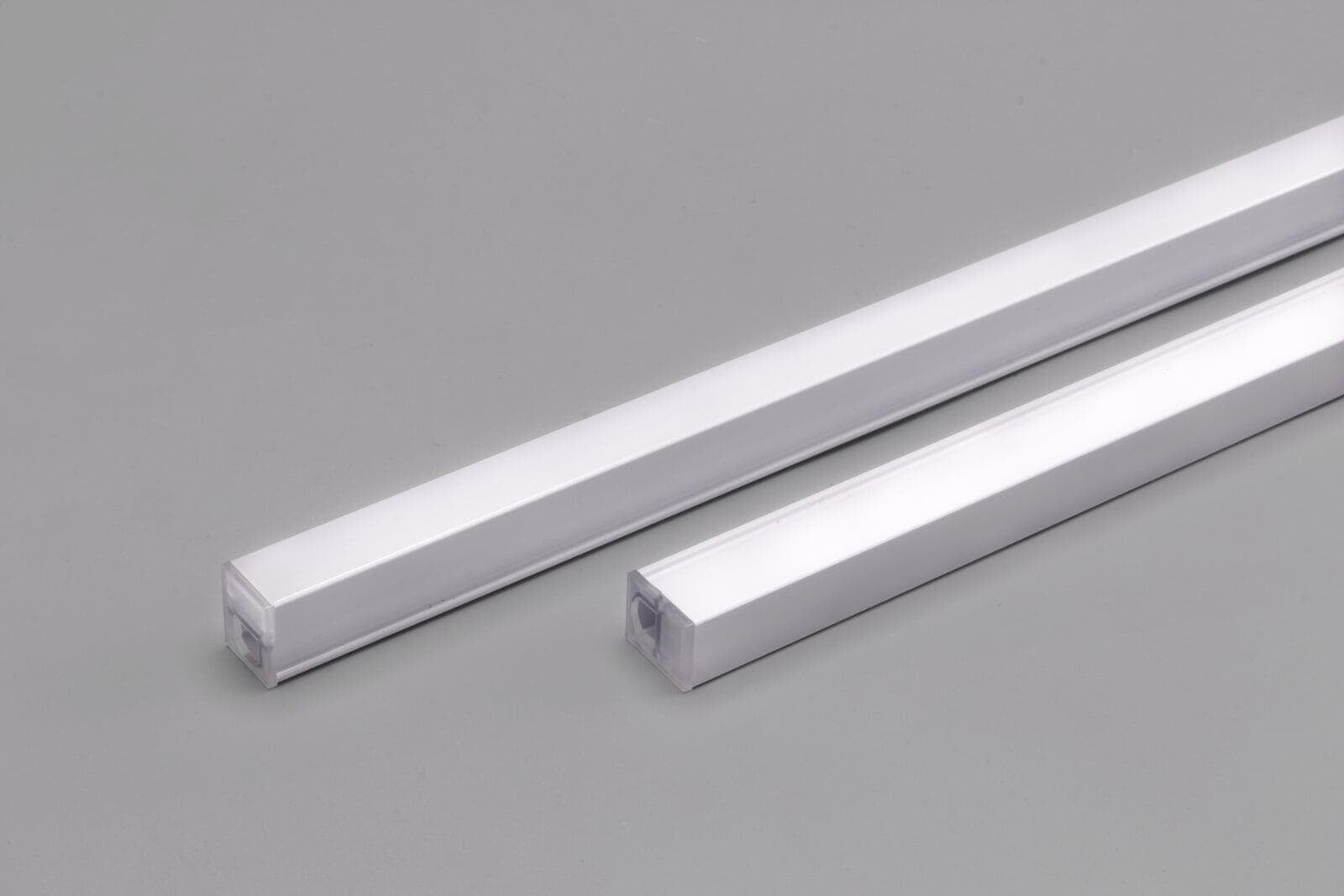

Nixy is an advanced lighting solution for cabinets and shelves, supporting up to 12-meter runs. It combines high-efficiency LEDs with a high Power Factor (PF) for optimal energy performance, ensuring compliance with Title 24 JA8 standards for high luminous efficacy.

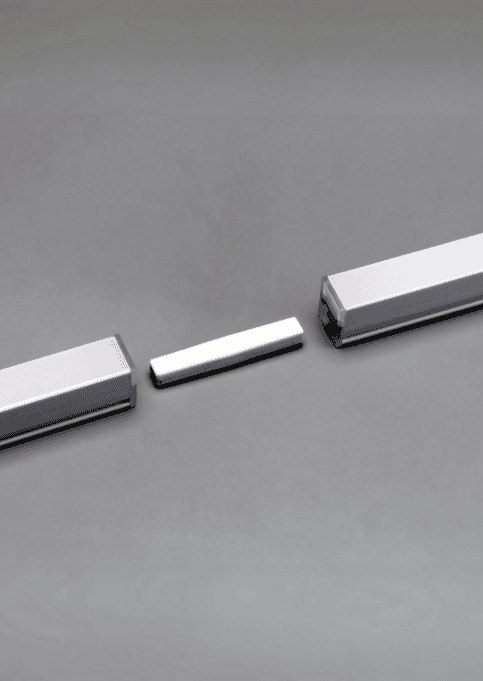

The Nixy system is designed for easy installation with on-field split joints and includes Class II insulation for safety. Its soft start feature gradually increases brightness, enhancing comfort. Nixy seamlessly integrates into various spaces, providing both functionality and style.
Features
Key features
DOB Integration
The integration of Driver-on-Board (DOB) technology into the light engine reduces the need for an external power supply. This innovative feature streamlines the lighting setup, enhances efficiency, and reduces maintenance requirements
Soft Start Performance
Nixy features a soft start mode, gradually increasing brightness when turned on. This not only extends the lifespan of the LEDs but also provides a comfortable lighting experience by avoiding sudden glare
Energy Efficiency
Nixy boasts a high Power Factor, ensuring energy efficiency and reduced electricity costs. It meets the stringent Title 24 JA8 compliance standards, making it an eco-friendly choice that supports sustainable building practices.
Highly Configurable
With multiple fixed lengths and join connectors, Nixy provides high configurability, adapting to various space needs. This feature simplifies installation and makes it suitable for specific project requirements
Accessories
Mounting & Fixation

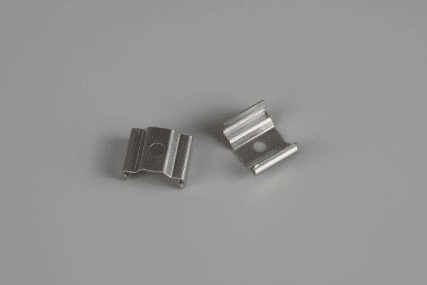

Bracket - Clip & Screw

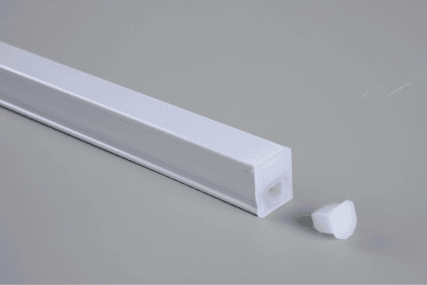

End Cap

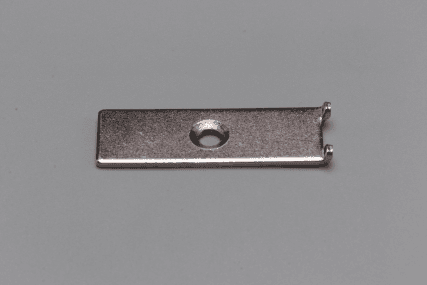

Metal Sheet
Specifications
Technical Data
CCT - Color Temperature
2700K, 3000K, 35000K, 4000K, 5000K
CRI - Color Rendering Index
>80CRI, >90CRI
Luminous Flux Density
82 Lumens/Watts, 250lm/ft
82 Lumens/Watts, 250lm/ft
Beam Angle
120°
120°

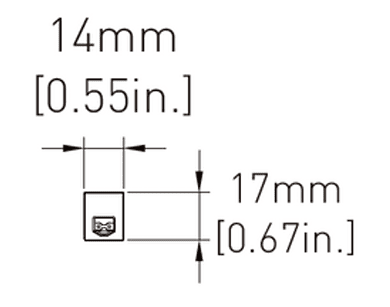

Overal Dimension
Construction
PC Co-Extrusion
with Class II Insulation
PC Co-Extrusion
with Class II Insulation
Mounting
Magnetic Mount
Available Lengths
4", 6", 12", 24", 48"
Field Splicing - Run Length up to 12M (39.4ft)
Operating Voltage
110-120VAC
Dimming
TRIAC
TRIAC
Power
3W/ft
3W/ft
Flicker Percentage
≤10% at a frenquency ≤200Hz
≤10% at a frenquency ≤200Hz
