Slat - Acoustic Slat Wood Panel Solution
Features
Key Features
True Slat-Integrated Design

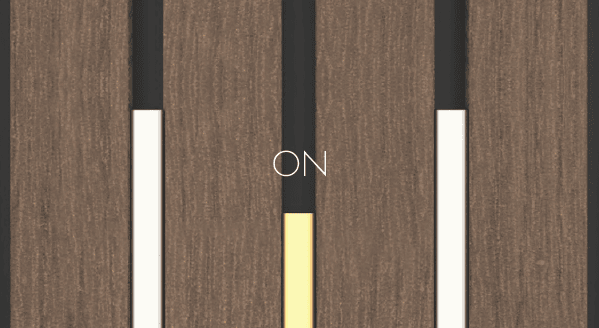

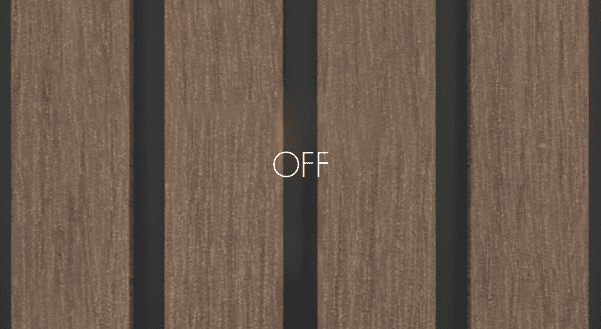

Medusa Slat is built to install inside 13 mm (0.51 in) and 15 mm (0.59 in) acoustic slat grooves, creating a light line that becomes part of the panel. When off, it disappears as a black reveal; when on, it delivers a precise architectural glow.
Fast, Tool-Free Installation
The profile press-fits directly into the slat groove with no clips or mounting hardware required. White versions feature a welding-free connection system that simplifies field assembly while keeping a clean architectural finish.
Dot-Free Continuous Light
High-density LEDs generate a smooth, uninterrupted line with no visible dots, allowing continuous runs up to 5 meters (16.4 ft) from one feed. This enables clean linear and curved slat designs with even, perfectly controlled illumination.
Premium Silicone Construction
A food-grade silicone jacket provides a soft matte finish, high impact resistance, and the flexibility required for curved panels. Designed for long-term performance, it maintains stability, appearance, and light quality over time.
Gallery
Configurations
Bending Options
Bending

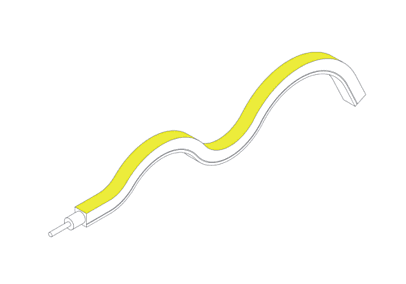

Top-Bend
Configurations
Power Cable Feed
Power Feed
Rear Feed
Specifications
Technical Data
CCT - Color Temperature
2700K, 3000K, 4000K
Available: Tunable CCT 2700-4000K
Available: RGBW
CRI - Color Rendering Index
>90CRI
Luminous Flux Density
35 lm/ft @ 4000K - 90CRI
35 lm/ft @ 4000K - 90CRI
Beam Angle
90°
90°

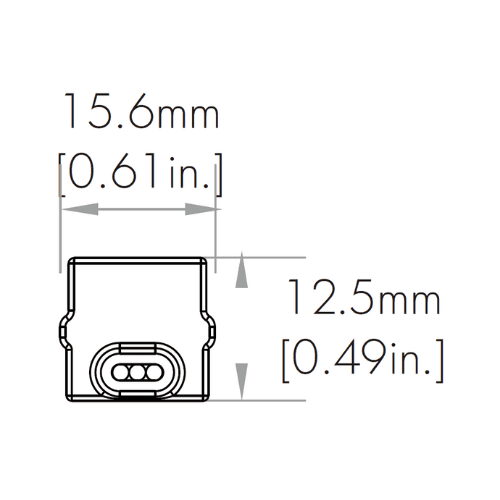

Overal Dimension
Groove size
15mm[0.59in.]
Groove size
13.6mm[0.51in.]
Free Cutting
Standard - Free Cutting at any length
Not applicable for Tunable CCT & RGBW
Finish
Deep Black
Run Length
Max run length 16ft (5M)
Operating Voltage
24VDC
Dimming
0–10 V / 1–10 V / DALI / PWM / CASAMBI
0–10 V / 1–10 V / DALI / PWM / CASAMBI
Power
4.27W/ft
4.27W/ft
Light Efficiency
Standard - 6 lm/W
CCT Tunable - 8 lm/WRGBW - 4 lm/W
Standard - 6 lm/W
