Mini
Introducing the Mini Medusa, a compact architectural linear light designed for versatility and durability. Available in top-bend, side-bend, and dual-bend options, this flexible light features a sleek W10 H10mm [W0.39 H0.39in.] square profile with a dust-proof matte finish for a refined appearance.
It provides dot-free, homogeneous lighting up to 5 meters [16.4ft.] and is built with high-impact, IK08-rated materials, offering IP67/IP68 (optional) waterproof protection.
The Mini Medusa is engineered for easy installation with field-cuttable lengths and fast assembly, thanks to die-cast endcaps sealed by gluing.
Features
Key Features

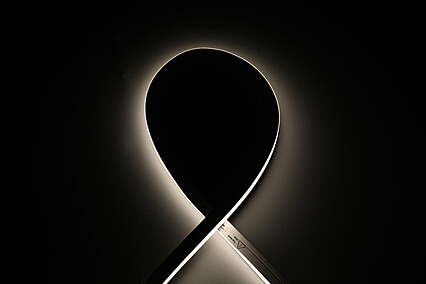

Flaxibility & Bending Options
It offers exceptional flexibility with top-bend, side-bend, and dual-bend configurations. Its compact square profile ensures an unobtrusive installation, allowing a seamless and dynamic lighting effects in both straight and curved layouts
Customization and Fixation
Designed for convenience, the Mini Medusa allows for field-cuttable lengths and fast assembly with endcaps sealed by gluing, making installation quick and straightforward. It supports dimmable lighting via PWM signal, offering customizable lighting control
Long Uniform Light
The product features uniform, dot-free, smooth, and comfortable light capable of running up to 5 meters (16.4 ft.), providing seamless and continuous illumination ideal for various architectural applications.
Safety and Protection
Built to last, the Mini Medusa is constructed with high-impact IK08-rated materials, ensuring resilience against external forces. Additionally, it offers IP67 waterproof protection, making it suitable for both indoor and outdoor installations.
Configurations
Bending Options
Bending

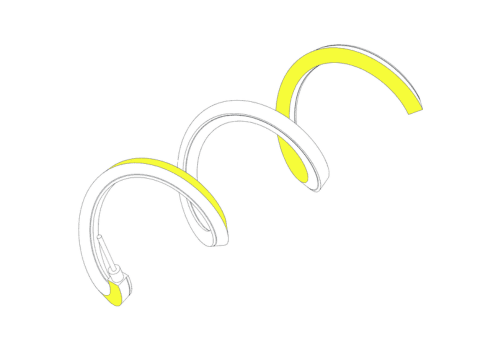

Dual-Bend
Bending

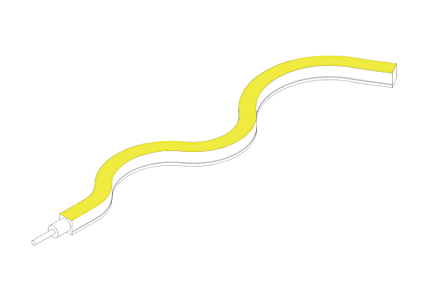

Side-Bend
Bending

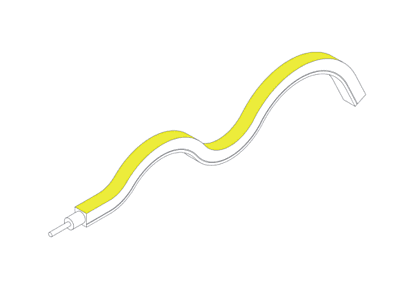

Top-Bend
Configurations
Power Cable Feed
Power Feed
Rear Feed
Power Feed
Side Feed
Power Feed
Bottom Feed
Accessories
Mounting & Fixation
Bracket & Screw

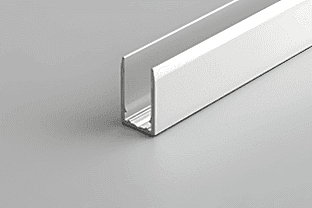

Linear Profile

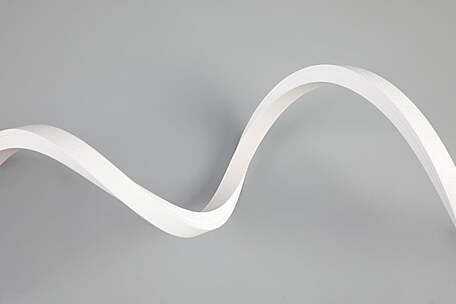

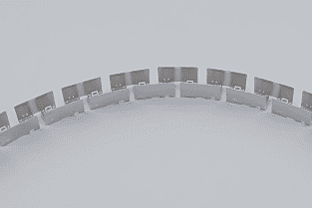

Bendable Profile
Specifications
Technical Data
CCT - Color Temperature
2700K, 3000K, 35000K, 4000K, 5000K, 6500K
CRI - Color Rendering Index
>80CRI, >90CRI
Luminous Flux Density
Dual-Bend - 137lm/ft
Top-Bend - 208lm/ftSide-Bend - 187lm/ft
Dual-Bend - 137lm/ft
Beam Angle
120°
120°
Overal Dimension
Finish
Milky White
Installation
Multiple options - Refer to Accessories
Operating Voltage
24VDC
Dimming
PWM
PWM
Power
Dual-Bend - 2.44W/ft (8W/M)
Top-Bend - 2.74W/ft (9W/M)
Side-Bend - 2.74W/ft (9W/M)
Dual-Bend - 2.44W/ft (8W/M)
