Pool & Underwater Series

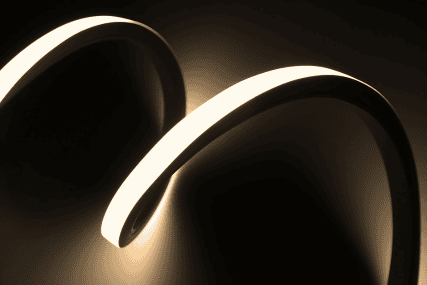

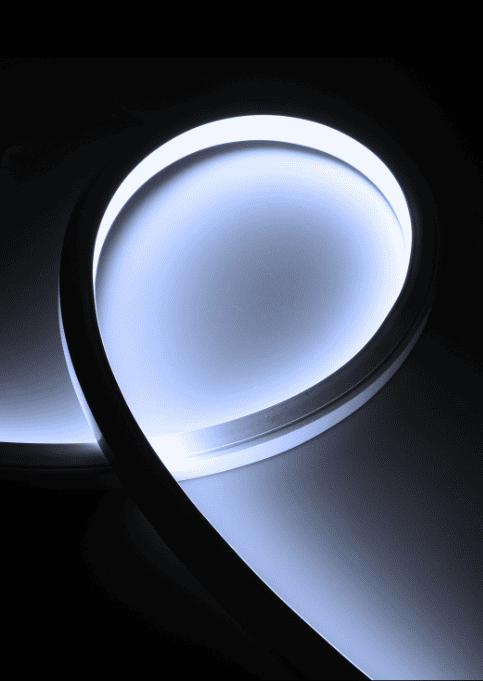

Meet Aqua, a robust linear flex light designed specifically for pool and underwater applications. Built with high-impact, IK08-rated materials, it provides reliable IP68 waterproof protection, functioning at depths of up to 3 meters [9.84ft.].
Aqua features advanced waterproofing solutions, including an ultra-thin coating on the PCBA, underwater-specific wiring with an anti-wicking ferrule, and durable IP68 connectors. Its compact and durable design, combined with superior silicone materials, ensures high resistance to UV, yellowing, heat, cold, and chemical exposure, making it the perfect choice for both aesthetic and functional underwater lighting
Features
Key Features
IP68 Waterproof Protection

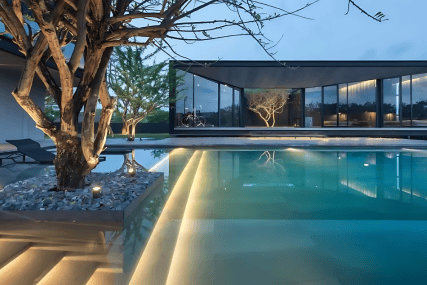

Aqua is designed for underwater use with IP68-rated waterproofing, allowing it to function reliably at depths of up to 3 meters [9.84ft.]. This ensures consistent performance in pools, fountains, and other aquatic settings
High-Quality Silicone Material
Aqua is crafted from premium silicone,
offering exceptional resistance to UV, yellowing,
heat, cold, and chemicals. This ensures reliable
and long-lasting performance in both fresh and saltwater environments.
Advanced Waterproofing Design
Aqua includes multiple waterproofing features like an ultra-thin PCBA coating, underwater-specific wiring with an anti-wicking ferrule, and secure hydraulic end caps, ensuring long-lasting durability in submerged conditions.
Durable IK08 Construction
Durable IK08 Construction
Aqua is built with IK08-rated impact resistance, featuring a compact and sturdy design that withstands physical stress. This makes it ideal for environments where durability is essential for long-term use
Configurations
Bending Options
Bending

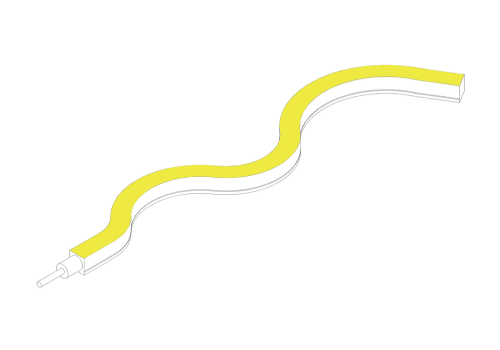

Side-Bend

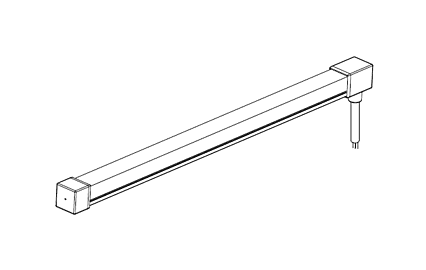

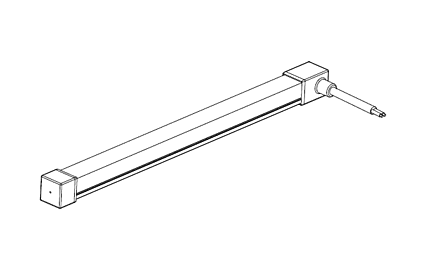

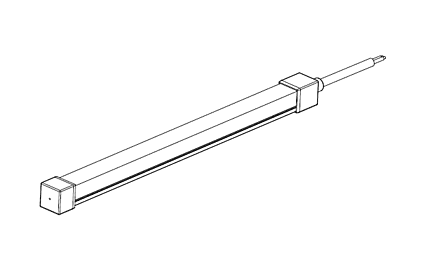

Available in Rear, Side and Bottom Power Feed
Bending

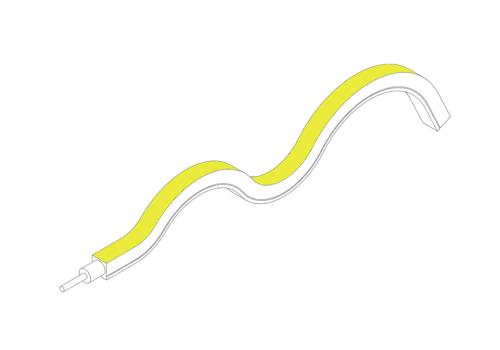

Top-Bend
Available in Rear, Side and Bottom Power Feed
Accessories
Mounting & Fixation

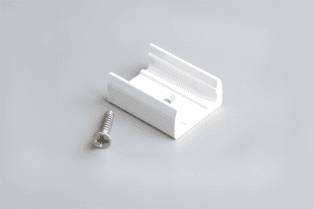

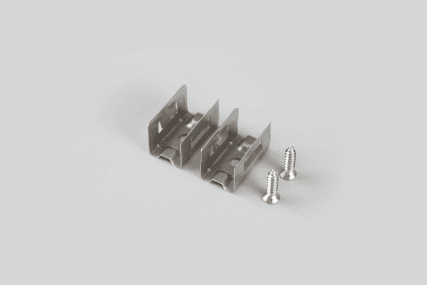

Bracket & Screw (Top-Bend)

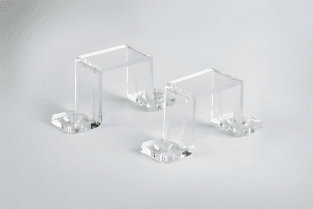

Clip & Screw (Top-Bend)
Bracked & Screw (Side-Bend)

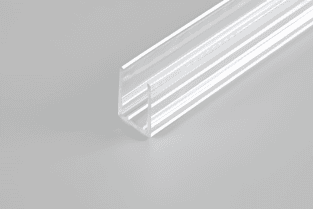

Linear PC Profile

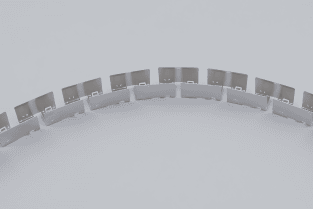

Bendable Profile
Bendable Profile
Specifications
Technical Data
CCT - Color Temperature
2700K, 3000K, 35000K, 4000K, 5000K, 6500K
CRI - Color Rendering Index
>80CRI, >90CRI
Luminous Flux Density
Top-Bend - 250lm/ft
Side-Bend - 170lm/ft
Top-Bend - 250lm/ft
Beam Angle
120°
120°
Overal Dimension
Side-Bend
Top-Bend
Finish
Milky White
Installation
Multiple options - Refer to Accessories
Operating Voltage
24VDC
Dimming
PWM
PWM
Power
Top-Bend - 4.3W/ft (14W/M)
Side-Bend - 4.3W/ft (14W/M)
Top-Bend - 4.3W/ft (14W/M)
