Light that respects the architecture
The BOLA Concave reveals light through elegance and control — a recessed luminaire offering 24° and 36° beam angles for soft yet defined illumination.
Available in dual units of 2", 3", and 4" cutouts, it integrates seamlessly into architectural ceilings, balancing minimal design with precise performance.
Features
Key Features
45° Adjustable Convex Head
A precision convex head tilts up to 45°,
offering flexible directional lighting with a clean, controlled aesthetic.
Unified Design Across Sizes
Available in Dual 2", 3", and 4", the series maintains identical proportions, ensuring a consistent visual harmony across all spaces.
Seamless Trim Integration
The ultra-thin trim sits flush with the ceiling, blending effortlessly into the architecture for a discreet, refined look.
Optical Comfort
A deep-set chamber and matte finishes minimize glare, combining performance with elegant, minimal detailing.
Gallery
Options

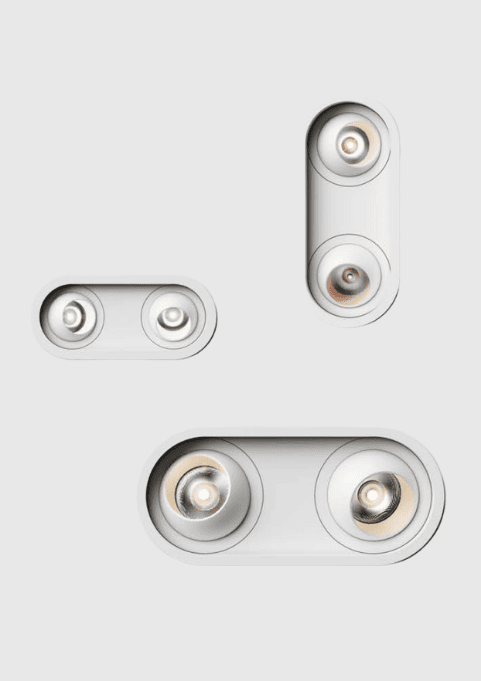

Available Sizes
Small - Dual 2" Diameter
(130x55mm cutout)
Medium - Dual 3" Diameter
(180x75mm cutout)
Large - Dual 4" Diameter
(220x95mm cutout)
Options
Beam Angles
Specifications
Technical Data
LIGHTING
CCT - Color Temperature
2700K, 3000K, 35000K, 4000K, 5000K
Also available in tunable white 2700-5000K
CRI - Color Rendering Index
>95CRI
Luminous Flux Density
Small 2" @ 1400 LumensMedium 3" @ 2400 Lumens
Large 4" @ 3600 Lumens
Small 2" @ 1400 Lumens
Medium 3" @ 2400 Lumens
Large 4" @ 3600 Lumens
Large 4" @ 3600 Lumens
Mesures are based on worst case scenarios
75°C Operating Temperature, 2700K, 95+CRI
Beam Angle
24°, 36°
24°, 36°
DOWNLOADS
MECHANICAL
Finish
Pure White, Deep Black
Installation
Recessed Concave Dual Spot
Available Sizes
Small 2" - 130x55mm Cutout
Medium 3" - 180x75mm Cutout
Large 4" - 220x95mm Cutout
Small 2" - 130x55mm Cutout
Medium 3" - 180x75mm Cutout
Large 4" - 220x95mm Cutout
Head Tilt
45°
45°
COMPLIANCE
ELECTRICAL
Input Voltage
100-240V AC
(External LED Driver Included)
Dimming & Control
TRIAC / DALI / Optional: 0-10V & 1-10V
TRIAC / DALI / Optional: 0-10V & 1-10V
Power
Small 2" @ 14W
Medium 3" @ 24W
Large 4" @ 36W
Small 2" @ 14W
Medium 3" @ 24WLarge 4" @ 36W
CONSIDERATIONS
