Light that respects the architecture
The BOLA Concave reveals light through elegance and control — a recessed luminaire offering 24° and 36° beam angles for soft yet defined illumination.
Available in 2", 3", and 4" cutouts, it integrates seamlessly into architectural ceilings, balancing minimal design with precise performance.
Features
Key Features

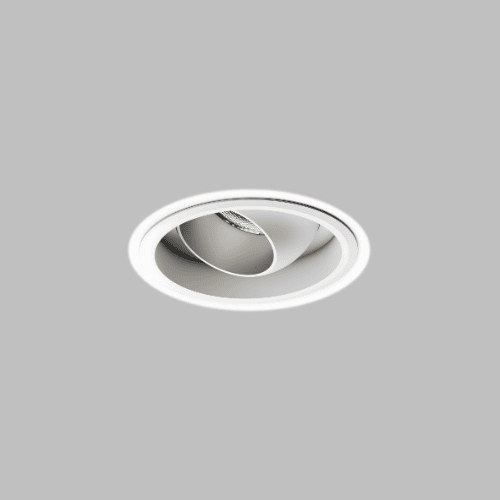

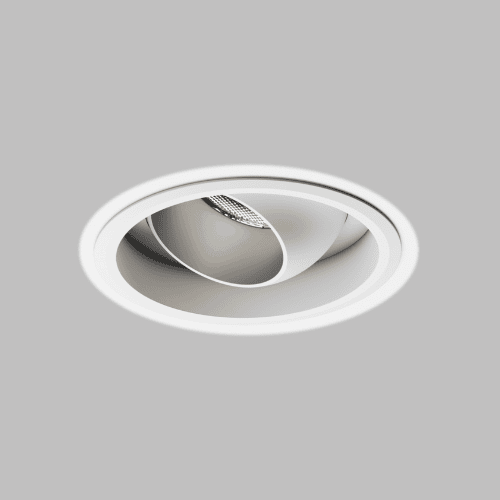

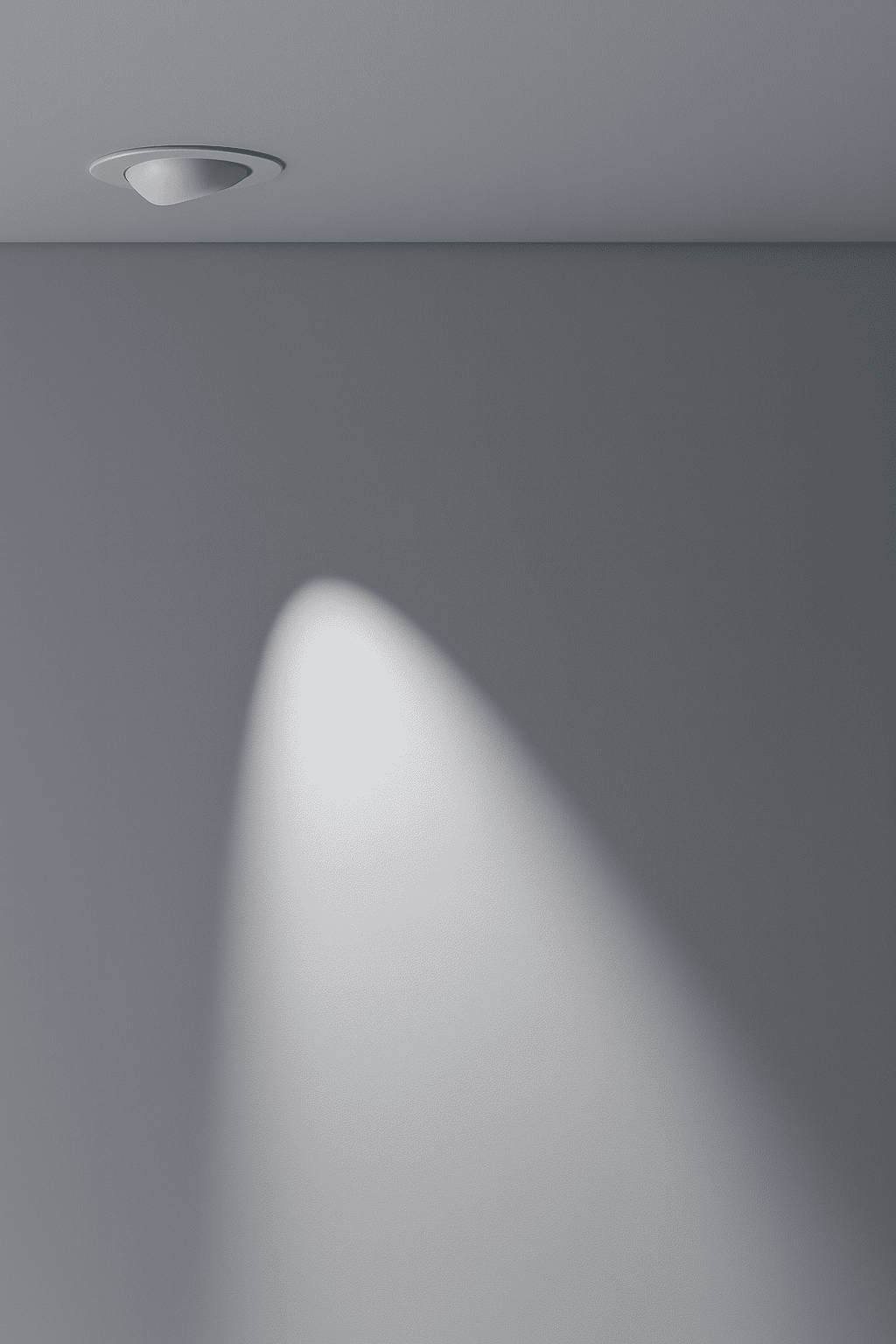

45° Adjustable Convex Head
A precision convex head tilts up to 45°,
offering flexible directional lighting with a clean, controlled aesthetic.

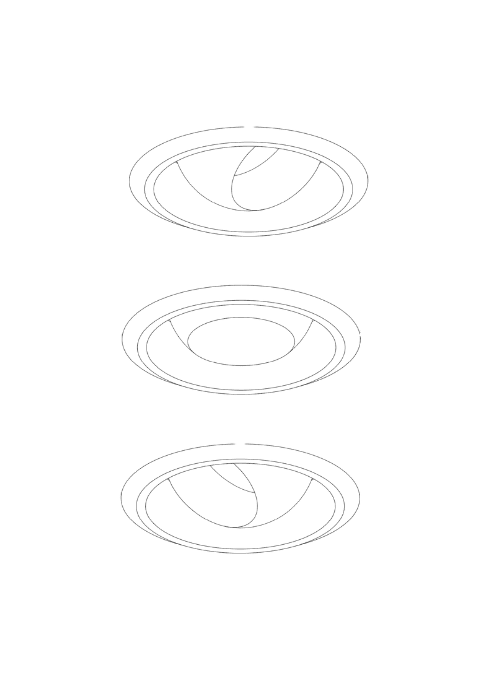

Unified Design Across Sizes
Available in 2", 3", and 4", the series maintains identical proportions, ensuring a consistent visual harmony across all spaces.
Seamless Trim Integration
The ultra-thin trim sits flush with the ceiling, blending effortlessly into the architecture for a discreet, refined look.
Optical Comfort
A deep-set chamber and matte finishes minimize glare, combining performance with elegant, minimal detailing.

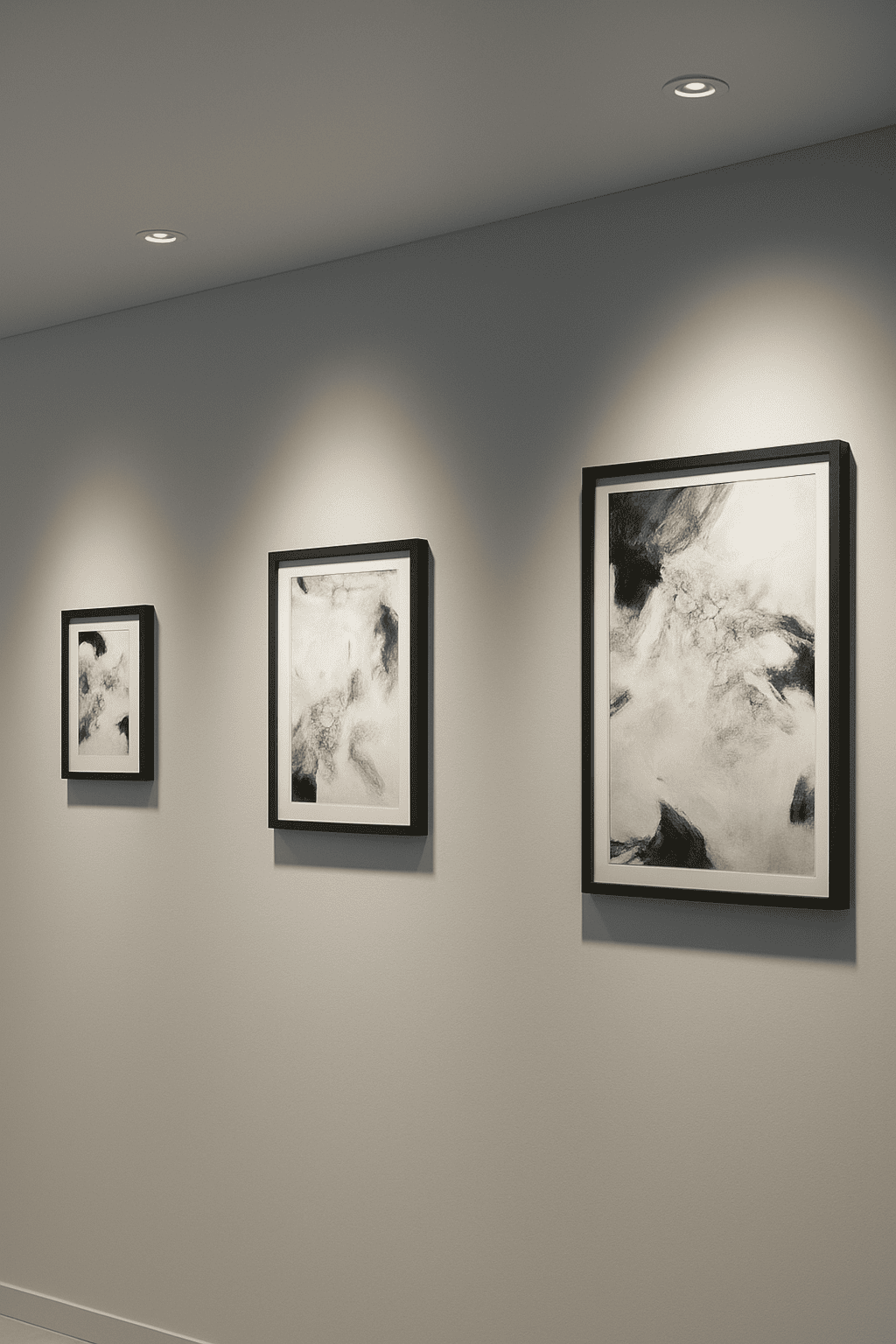

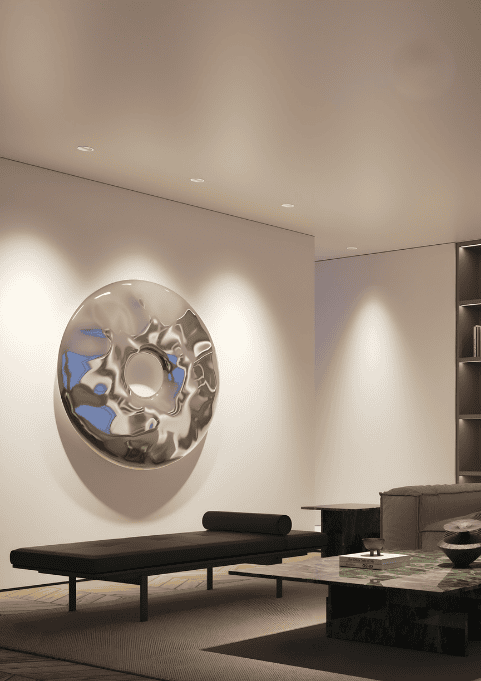

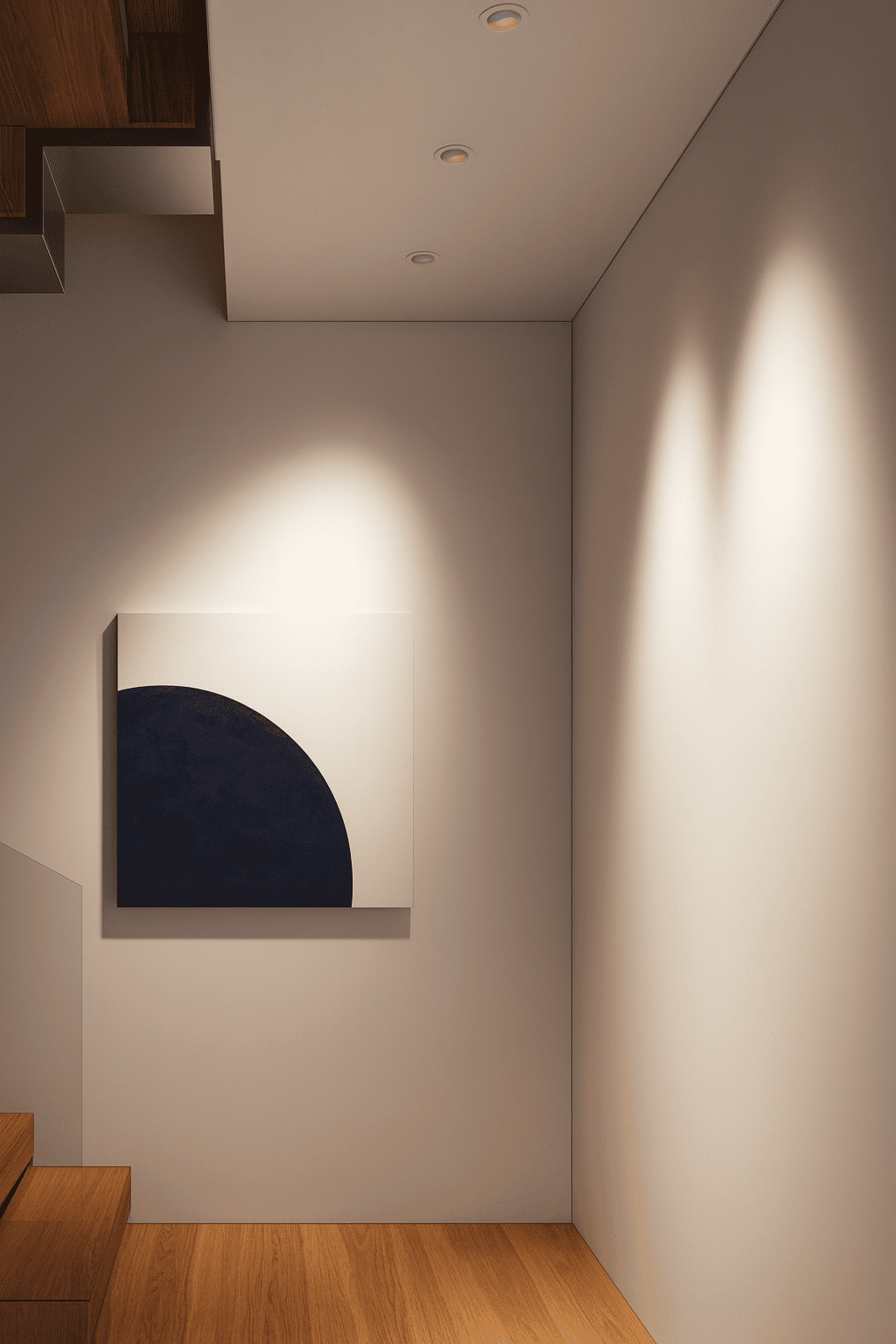

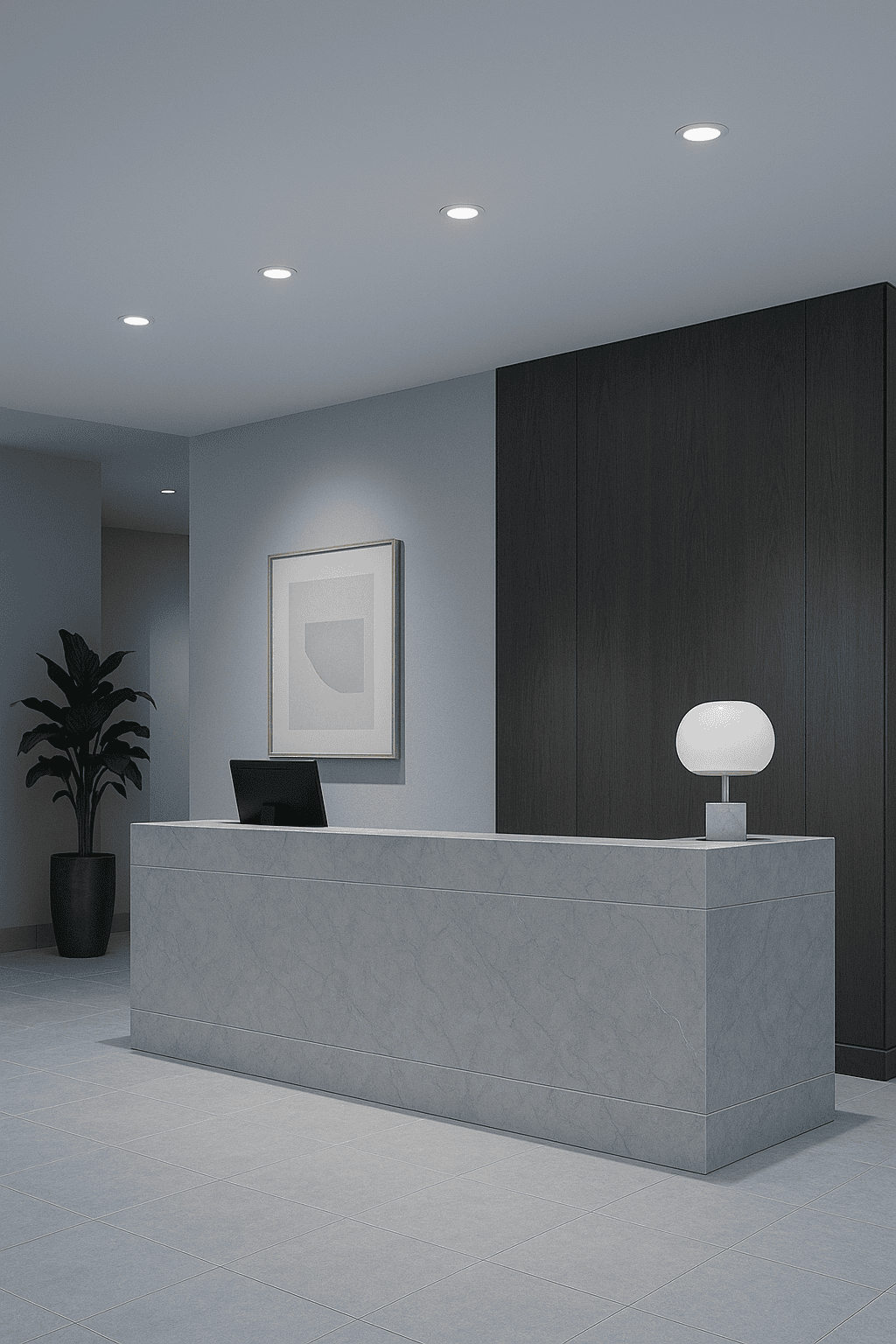

Gallery
Options
Available Sizes
Small - 2" Diameter (55mm cutout)
Medium - 3" Diameter (75mm cutout)
Large - 4" Diameter (95mm cutout)
Options
Beam Angles
Specifications
Technical Data
LIGHTING
CCT - Color Temperature
2700K, 3000K, 35000K, 4000K, 5000K
Also available in tunable white 2700-5000K
CRI - Color Rendering Index
>95CRI
Luminous Flux Density
Small 2" @ 500 LumensMedium 3" @ 800 Lumens
Large 4" @ 1200 Lumens
Small 2" @ 500 Lumens
Medium 3" @ 800 Lumens
Large 4" @ 1200 Lumens
Large 4" @ 1200 Lumens
Beam Angle
24°, 36°
24°, 36°
DOWNLOADS
MECHANICAL
Finish
Pure White, Deep Black
Installation
Recessed Concave Spot
Available Sizes
Small 2" - 55mm Cutout
Medium 3" - 75mm Cutout
Large 4" - 95mm Cutout
Small 2" - 55mm Cutout
Medium 3" - 75mm Cutout
Large 4" - 95mm Cutout
Concave Head Tilt
45°
45°
COMPLIANCE
ELECTRICAL
Input Voltage
100-240V AC
Dimming
TRIAC / DALI / Optional: 0-10V & 1-10V
TRIAC / DALI / Optional: 0-10V & 1-10V
Power
Small 2" @ 7W
Medium 3" @ 12W
Large 4" @ 18W
Small 2" @ 7W
Medium 3" @ 12WLarge 4" @ 18W
