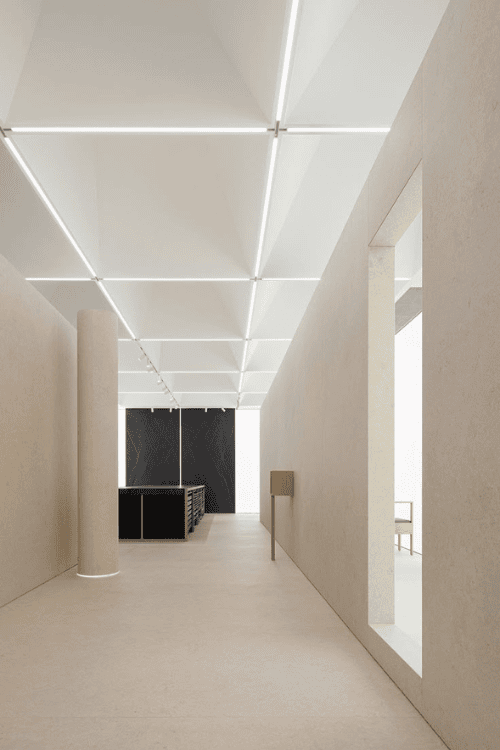

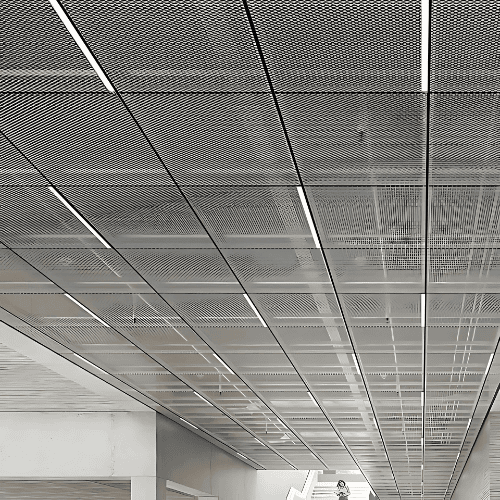

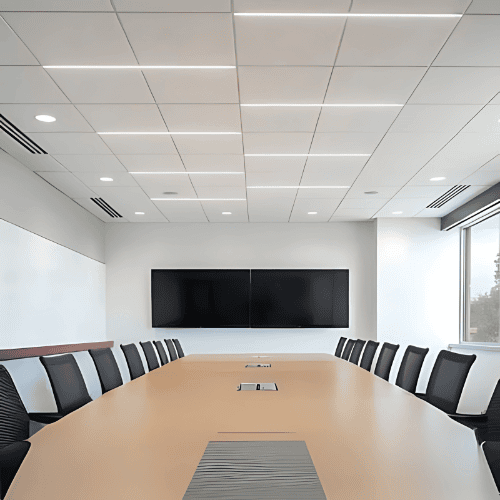

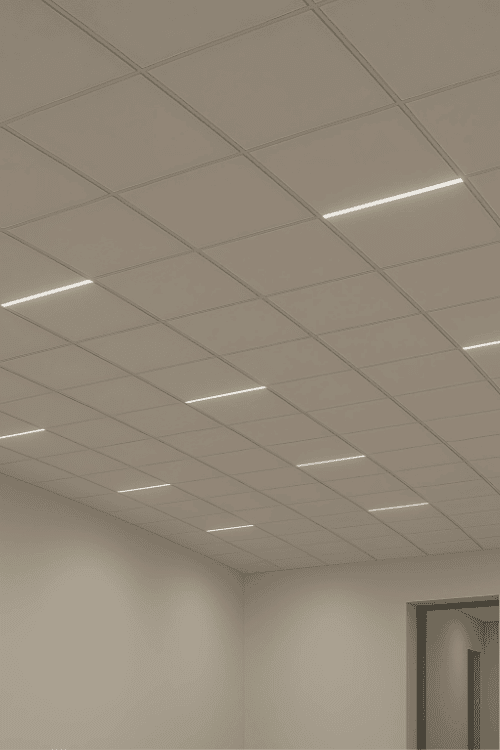

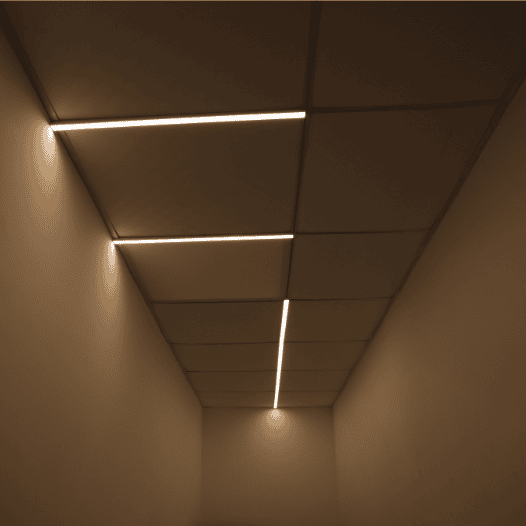

Suspended Grid Ceiling Solution
T-Grid is a revolutionary lighting solution designed to take full advantage of the clean lines and aesthetics of modern ceilings. It offers maximum light output, yet remains hidden and discreet. Allowing you to get extreme versatility and ease of installation.
Features
Key Features
Magnetic Mount
The T-Grid allows for easy installation and removal, providing a secure and stable attachment.
This feature significantly reduces installation time and labor costs.
Plug & Play
The system features simplified electrical connections, minimizing installation errors, and is ready-to-use for immediate operation
DLC Premium Certification
The fixture is in the process of obtaining DLC Premium certification, which ensures it meets high standards for energy efficiency and performance. This certification makes the fixture eligible for energy rebates and incentives
Modular System
It offers customizable configurations to fit various spaces and is expandable with additional modules, making it adaptable to different lighting needs and designs
No Plenum Occupancy
The design maintains clear plenum space for other systems, improves airflow and ventilation, and complies with safety and building regulations
High Capacity Light Engine
Light engine capable of powering up to 16 fixtures of 24" or 8 fixtures of 48" from a single power supply. This feature simplifies installation by reducing the need for multiple power sources and is ideal for large-scale lighting projects
Types

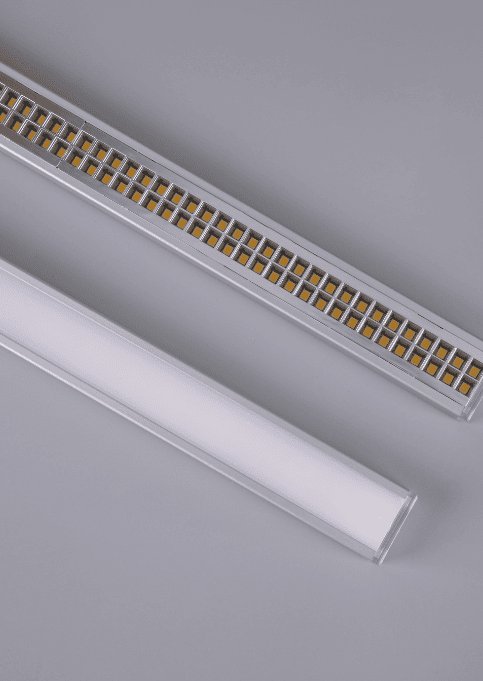

Configurations

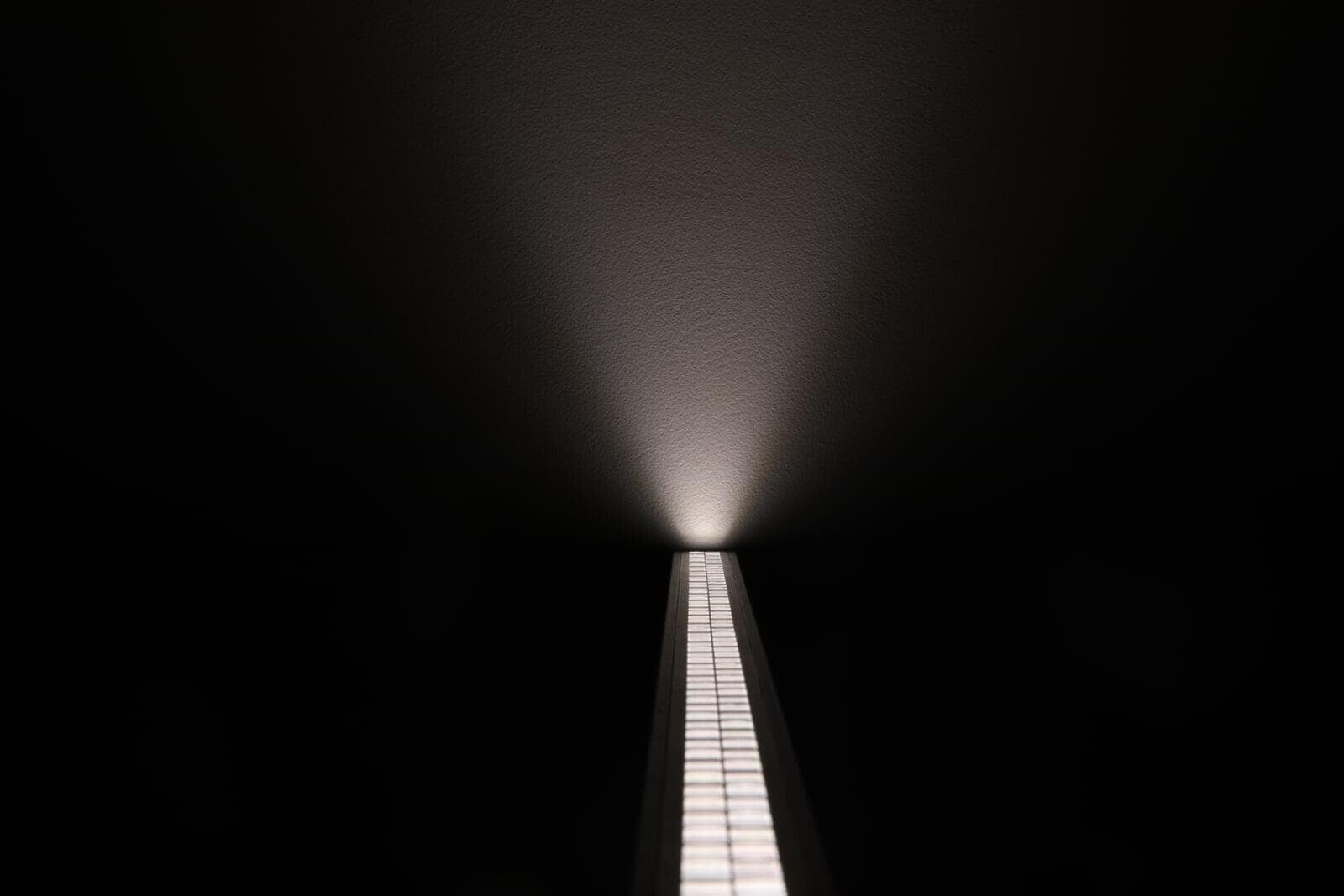

Grating Version
Ideal for Accent Lighting
60° Beam Angle
Silver PC Grating

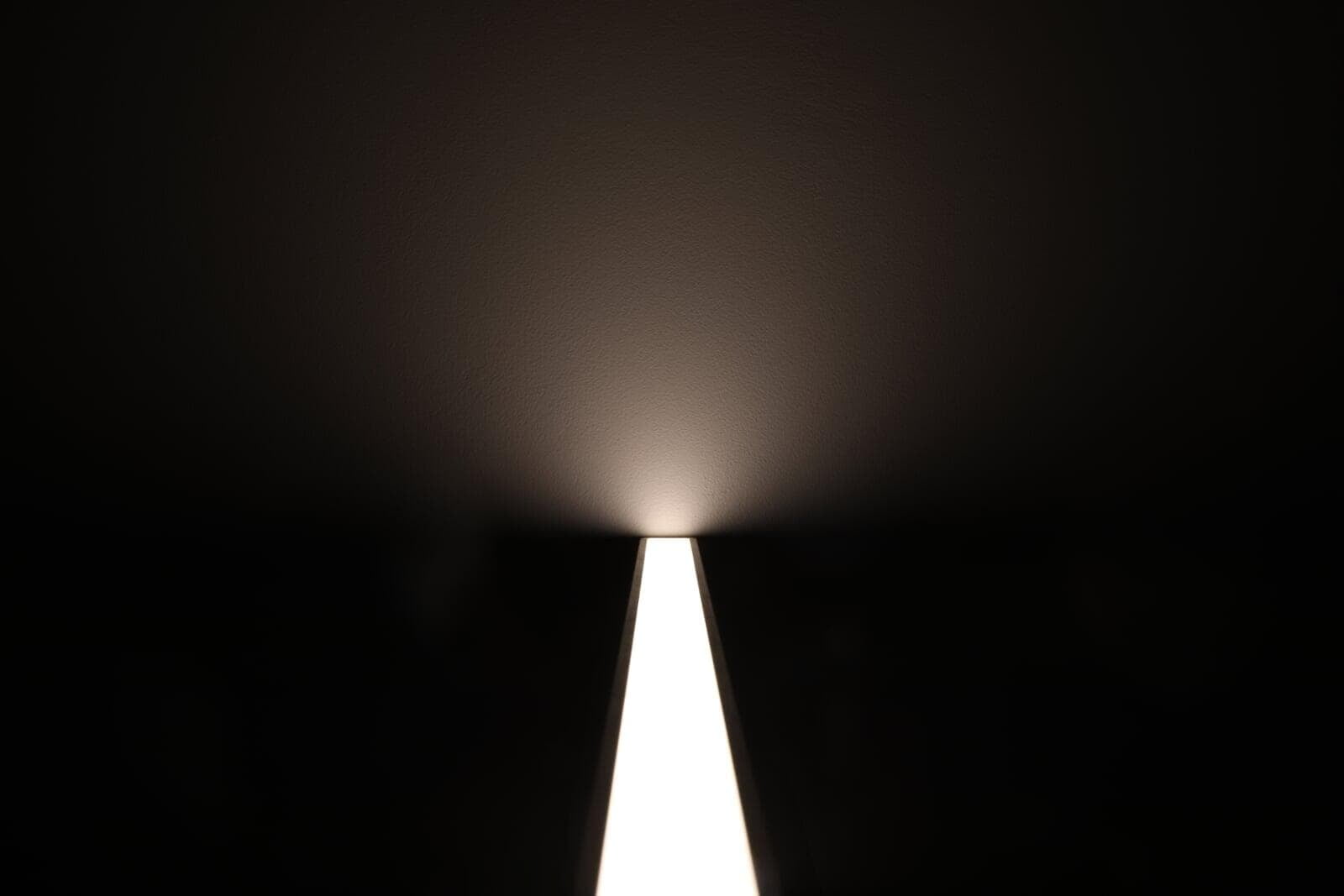

Diffusion version
Ideal for Ambient Lighting
120° Beam Angle
Frosted PC Diffuser
Specifications
Technical Data
CCT - Color Temperature
2700K, 3000K, 35000K, 4000K, 5000K
CRI - Color Rendering Index
>80CRI, >90CRI
Luminous Flux Density
24" (0.6m) - 1320 lm @ 110 Lumens/Watts
48" (1.2m) - 2640 lm @ 110 Lumens/Watts
24" (0.6m) - 1320 lm @ 110 Lumens/Watts
48" (1.2m) - 2640 lm @ 110 Lumens/Watts
Beam Angle
Diffusion Version - 120°
Grating Version - 60°
Diffusion Version - 120°
Grating Version - 60°
Construction
High Precision Aluminium Extrusion
PC Frosted Diffuser, PC Grating Diffuser
High Precision Aluminium Extrusion
PC Frosted Diffuser, PC Grating Diffuser
Finish
Anodized Clear Class II
Mounting
Magnetic Mount
Operating Voltage
24V
Dimming
0-10V Available
0-10V Available
Power
12W @ 24" (0.6m)
24W @ 48" (1.2m)
12W @ 24" (0.6m)
24W @ 48" (1.2m)
Compatible Driver
ERP Power, Meanwell, Lutron,...
ERP Power, Meanwell, Lutron,...
