Highly Configurable Lighting Solution

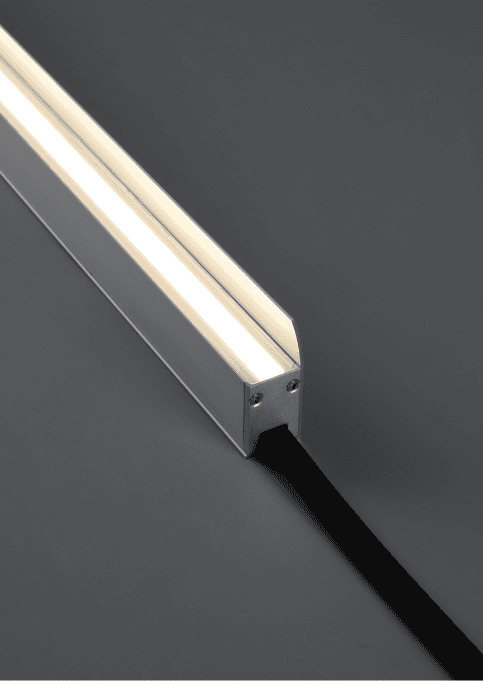

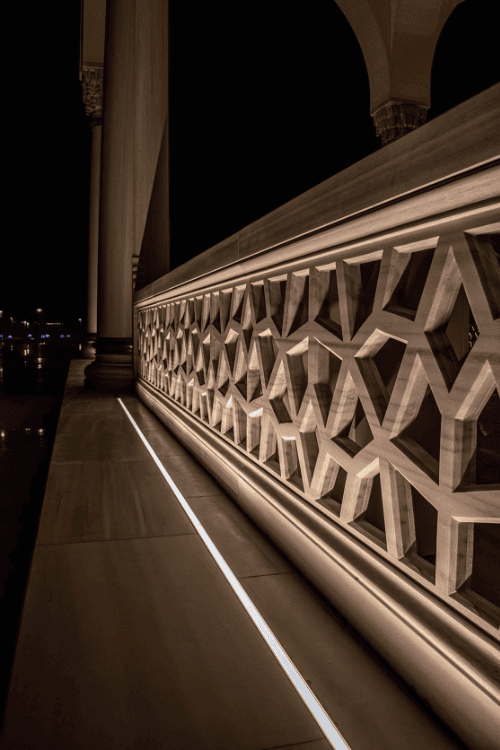

A linear lighting solution designed for seamless integration into architectural spaces. With a high-efficiency fixed white CCT configuration, The Liny delivers clean, uninterrupted lines of light—ideal for refined architectural details and minimalist expressions. Its compact profile and IP67-rated construction make it a versatile choice for both indoor and outdoor applications where performance and visual purity matter.
An RGBW + DMX version is also available, enabling pixel-level control and dynamic color effects for more expressive lighting environments.
Features
Key Features
Beam Angles
The fixture provides a diverse selection of beam angles, from 15° up to 120°. This feature allows precise control over light distribution, making it suitable for both accent and general lighting applications
Robust Structure
Liny's construction includes an IK10-rated housing, for high resistance to mechanical impacts, and an IP67 ingress protection rating, ensuring it is dust-tight and protected against immersion in water.

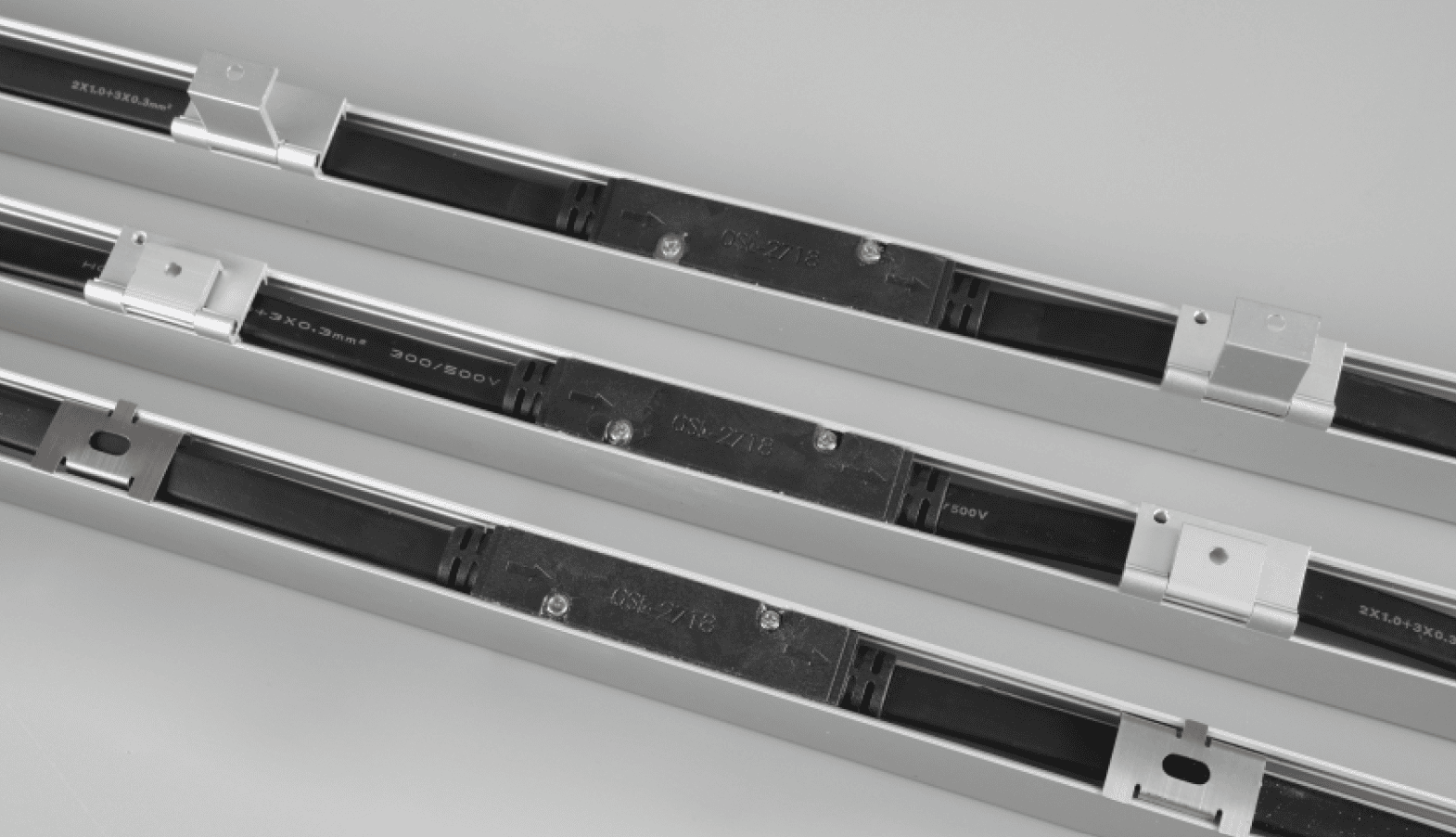

Cable Management within the extrusion
Highly Configurable
Liny offers extensive configurability with Multiple length and mounting options. This flexibility ensures compatibility with various architectural spaces, allowing tailored lighting solutions
Sleek Design
Liny boasts a minimalist and modern appearance. The fixture’s tempered glass front cover and optical lens enhance its aesthetic appeal while ensuring optimal light transmission and durability.

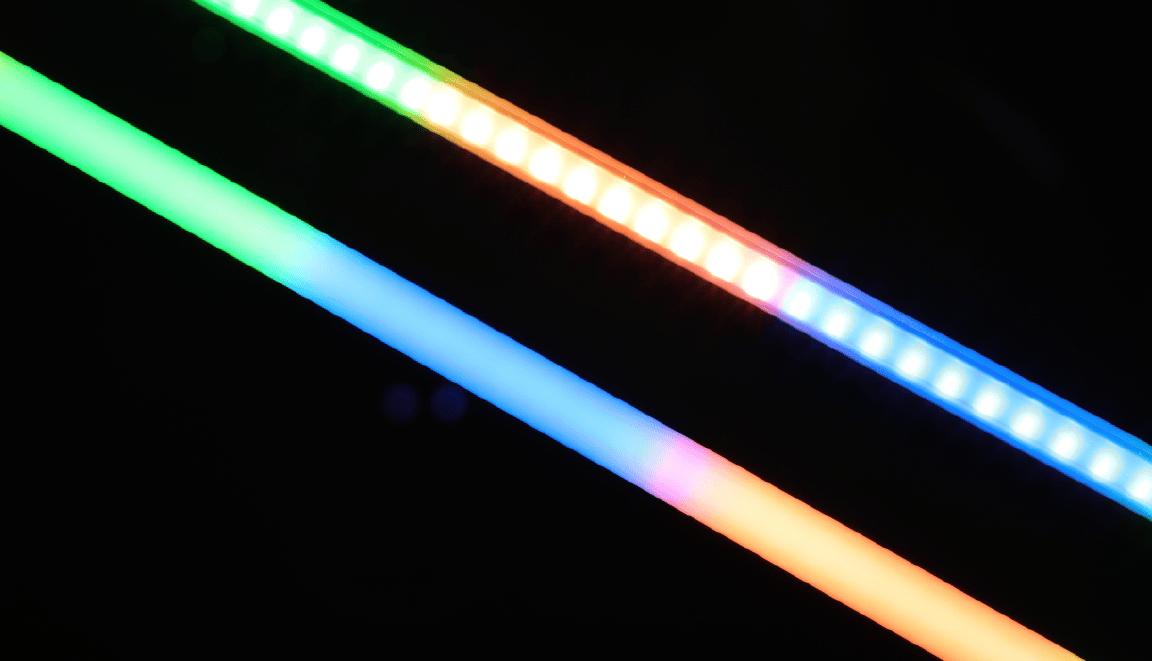

RGBW (DMX-Controlled) Version

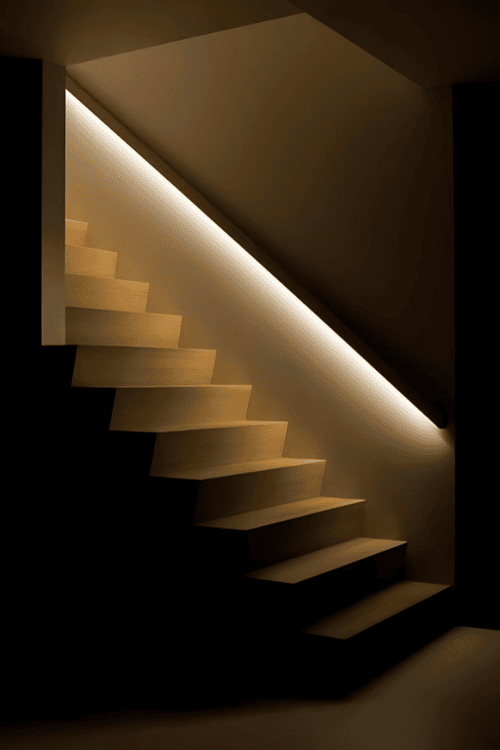

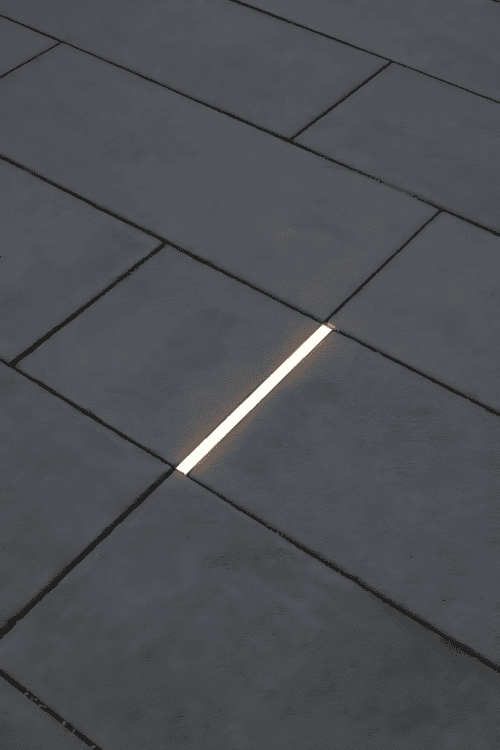

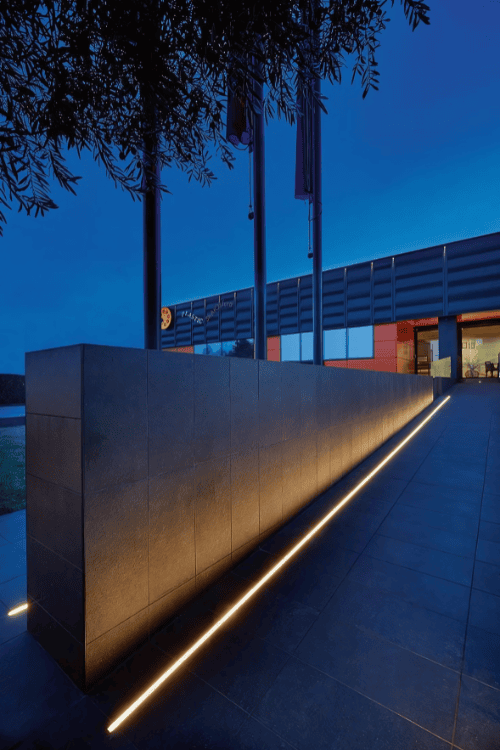

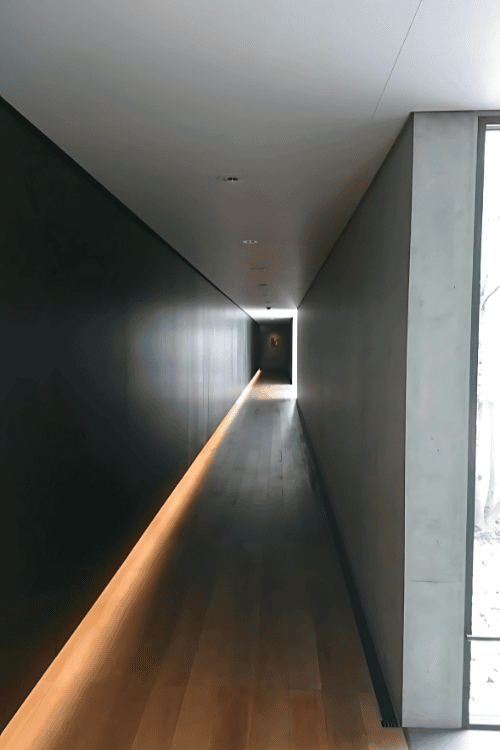

Gallery
Options
Beam Angles
15°
30°
45°
60°
120°
Accessories
Mounting & Fixation

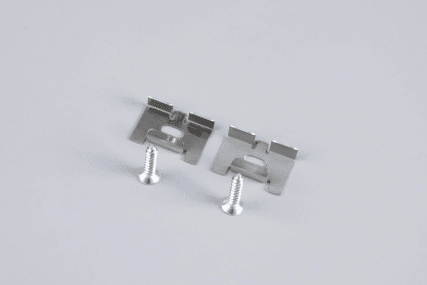

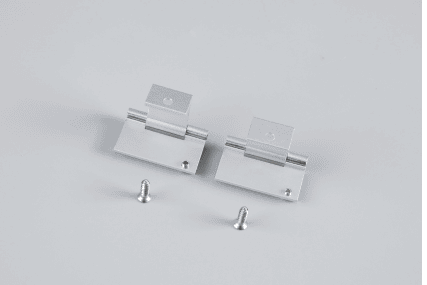

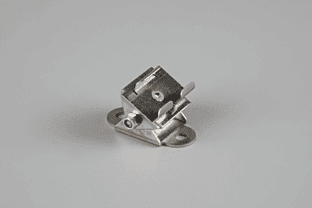

Bracket - Clip & Screw

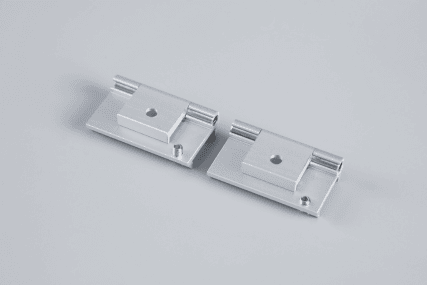

Bracket - 60° Rotatable
Bracket - 90° Rotatable
Bracket - 180° Rotatable

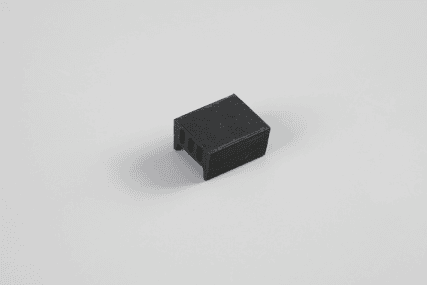

Cable Clamp

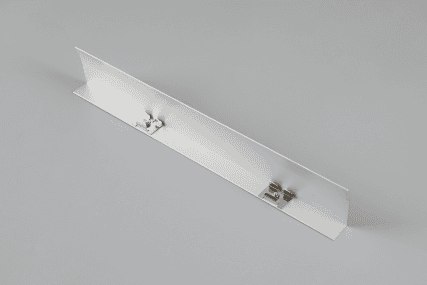

Anti-Glare Shield
Compatible with all Brackets

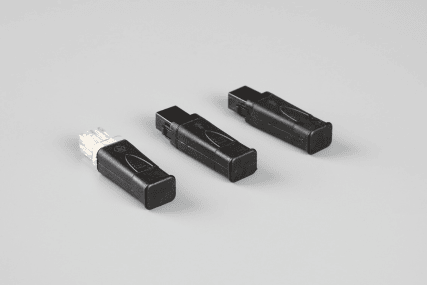

End Connectors
Specifications
Technical Data
CCT - Color Temperature
2400K, 2700K, 3000K, 35000K, 4000K, 5000K, 6500K
Also available in RGBW (DMX-controlled)
CRI - Color Rendering Index
Ra ≥80 / Ra ≥90
Luminous Output
15° - 100 Lm/W, 880lm/ft
30° - 113 Lm/W, 900lm/ft
45° - 123 Lm/W, 980lm/ft
60° - 113 Lm/W, 900lm/ft
120° - 65 Lm/W, 500lm/ft
Values are nominal and vary by optic, CCT, and configuration.
15° - 100 Lm/W, 880lm/ft
30° - 113 Lm/W, 900lm/ft
45° - 123 Lm/W, 980lm/ft
60° - 113 Lm/W, 900lm/ft
120° - 65 Lm/W, 500lm/ft
Values are nominal and vary by optic, CCT, and configuration.
Beam Angle
15°, 30°, 45°, 60°, 120°
15°, 30°, 45°, 60°, 120°
Overal Dimension
Construction
Precision Extruded Aluminum Profile
Precision Extruded Aluminum Profile
Finish
Anodized Clear Class II
Installation
Multiple options - Refer to Accessories
Available Lengths
12", 24", 40", 48"
12", 24", 40", 48"
Operating Voltage
24V DC
Dimming & Control
0–10 V / 1–10 V / PWM / DALI / Casambi
DMX (RGBW configurations only)
0–10 V / 1–10 V / PWM / DALI / Casambi
DMX (RGBW configurations only)
Power
8W/ft (26W/M)
8W/ft (26W/M)
DMX RGBW
DMX RGBW (via external DMX controller)
UCS512H-based control
Pixel-level effect (2–8 RGBW px depending on length)
16-bit grayscale (65,536 levels), RDM support
UCS512H-based control
Pixel-level effect (2–8 RGBW px depending on length)
16-bit grayscale (65,536 levels), RDM support
